6x19

6×19S、6×19W Line Contact Wire Rope （galvanized smooth surface）

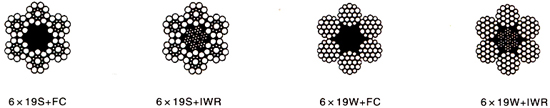

Wire Rope Structure（construction）：6×19S+FC 6×19S+IWR 6×19W+FC 6×19W+IWR
Nominal Diameter		Approox.Weight			Nominal Tensile Strength of Rope （MPa）
					1470		1570		1670		1770		1780
					Minimum Breaking Load of Rope
d	Allowed Tolerance	NF	SF	IWR/IWS	FC	IWR/IWS	FC	IWR/IWS	FC	IWR/IWS	FC	IWR/IWS	FC	IWR/IWS
d	Allowed Tolerance	natural fibre core wire rope	synthetic fibre core wire rope	steel core wire rope	fibre core wire rope	steel core wire rope	fibre core wire rope	steel core wire rope	fibre core wire rope	steel core wire rope	fibre core wire rope	steel core wire rope	fibre core wire rope	steel core wire rope
mm	％	kg/100m			kN
5	6	9.2	9	10.1	12.1	13.1	13	14	13.8	14.9	14.6	15.8	15.4	16.6
6	0	13.3	13	14.6	17.5	18.8	18.7	20.1	19.8	21.4	21.4	22.7	22.2	24
7		18.2	17.6	19.9	23.8	25.6	25.4	27.4	27	29.1	28.6	30.9	30.2	32.6
8		23.6	23	25.9	31	33.5	33.2	35.8	35.3	38	37.4	40.3	39.5	42.6
9		29.9	29.1	32.8	39.3	42.4	42	45.3	44.6	48.2	47.3	51	50	53.9
10		36.9	36	40.5	48.5	52.3	51.8	55.9	55.1	59.5	58.4	63	61.7	66.6
11		44.6	43.5	49.1	58.7	63.3	62.7	67.6	66.7	71.9	70.7	76.2	74.7	80.6
12		53.1	51.8	58.4	69.9	75.4	74.6	80.5	79.4	85.6	84.1	90.7	88.9	95.9
13		62.3	60.8	68.5	82	88.4	87.6	94.5	93.1	100	98.7	106	104	113
14		72.2	70.5	79.5	95.1	103	102	110	108	117	114	124	121	130
16		94.4	92.1	104	124	134	133	143	141	152	150	161	158	170
18		119	117	131	157	170	168	181	179	193	189	204	200	216
20		147	144	162	194	209	207	224	220	238	234	252	247	266
22		178	174	196	235	253	251	271	267	288	283	305	299	322
24		212	207	234	279	301	298	322	317	342	336	363	355	383
26		249	243	274	328	354	350	378	373	402	395	426	417	450
28		289	282	318	380	410	406	438	432	466	458	494	484	522
30		332	324	365	437	471	466	503	496	535	526	567	555	599
32		377	369	415	497	536	531	572	564	609	598	645	632	682
34		426	416	469	561	605	599	646	637	687	675	728	713	770
36		478	466	525	629	678	671	724	714	770	757	817	800	863
38		532	520	585	700	756	748	807	796	858	843	910	891	961
40		590	576	649	776	837	829	894	882	951	935	1010	987	1070
42		650	635	715	856	923	914	986	972	1050	1030	1110	1090	1170
44		714	679	785	939	1010	1000	1080	1070	1150	1130	1220	1190	1290
46		780	761	858	1030	1110	1100	1180	1170	1260	1240	1330	1310	1410
48		849	829	934	1120	1210	1190	1290	1270	1370	1350	1450	1420	1530
50		922	900	1010	1210	1310	1300	1400	1380	1490	1460	1580	1540	1660
52		997	973	1100	1310	1420	1400	1510	1490	1610	1580	1700	1670	1800
54		1070	1050	1180	1410	1530	1510	1630	1610	1730	1700	1840	1800	1940
56		1160	1130	1270	1520	1640	1620	1750	1730	1860	1830	1980	1940	2090
58		1240	1210	1360	1630	1760	1740	1880	1850	2000	1960	2120	2080	2240
60		1330	1300	1460	1750	1880	1870	2010	1980	2140	2100	2270	2220	2400
62		1420	1380	1560	1860	2010	1990	2150	2120	2290	2250	2420	2370	2560
64		1510	1470	1660	1990	2140	2120	2290	2260	2440	2390	2580	2530	2730
66		1610	1570	1770	2110	2280	2260	2430	2400	2590	2540	2740	2690	2900
68		1700	1660	1870	2240	2420	2400	2580	2550	2750	2700	2910	2850	3080
70		1810	1760	1990	2380	2560	2540	2740	2700	2910	2860	3090	3020	3260
72		1910	1870	2100	2510	2710	2690	2900	2860	3080	3030	3270	3200	3450
74		2020	1970	2220	2660	2870	2840	3060	3020	3260	3200	3450	3380	3650
76		2130	2080	2340	2800	3020	2990	3230	3180	3430	3370	3640	3560	3850
78		2240	2190	2470	2950	3180	3150	3400	3350	3620	3550	3830	3750	4050
80		2360	2300	2590	3100	3350	3320	3580	3530	3800	3740	4030	3950	4260

Main Applications：Various equipment for hoisting ,derricking,lifting,towing,port load and unload,blast furnace hoisting and oil well drilling.
The rope with wire core can be used under the shock load,heated,heated and squeezed conditions
