多层股不旋转钢丝绳（光面和镀锌）

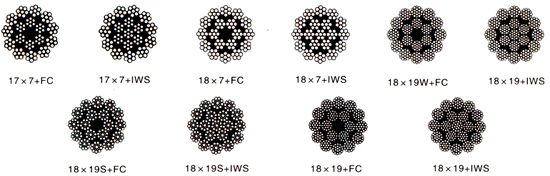

| 钢丝绳结构（Construction）:17×17+FC 17×17+IWS 18×7+FC 18×7+IWS 18×19W+FC 18×19W+IWS | |||||||
| Nominal Diameter | Approx.Weight | Nominal Tensile Strength or Rope 钢丝绳公称抗拉强度（MPa） | |||||
| 钢丝绳公称直径 | 钢丝绳近似重量 | ||||||
| 1470 | 1570 | 1670 | 1770 | 1870 | |||
| d | Allowed Tolerance | Minimum Breaking Load of Rope钢丝绳最小破断拉力 | |||||
| 允许偏差 | |||||||
| mm | % | kg/100mm | kN | ||||
| 4 | 60 | 6.2 | 7070 | 8.2 | 8.8 | 9.3 | 9.8 |
| 5 | 9.8 | 12.1 | 12.9 | 13.7 | 14.5 | 15.3 | |
| 6 | 14 | 17.4 | 18.5 | 19.7 | 20.9 | 22.1 | |
| 7 | 19.1 | 23.6 | 25.2 | 26.3 | 28.4 | 30.1 | |
| 8 | 25 | 30.9 | 33 | 35.1 | 37.2 | 39.3 | |
| 9 | 31.6 | 39.1 | 41.7 | 44.4 | 47 | 49.7 | |
| 10 | 39 | 48.2 | 51.5 | 54.8 | 58.1 | 61.3 | |
| 11 | 47.2 | 58.3 | 62.3 | 66.3 | 70.2 | 74.2 | |
| 12 | 56.2 | 69.4 | 74.2 | 78.9 | 83.6 | 88.3 | |
| 13 | 65.9 | 81.5 | 87 | 92.6 | 98.1 | 104 | |
| 14 | 76.4 | 94.5 | 101 | 107 | 114 | 120 | |
| 16 | 99.8 | 123 | 132 | 140 | 149 | 157 | |
| 18 | 126 | 156 | 167 | 177 | 188 | 199 | |
| 20 | 156 | 193 | 206 | 219 | 232 | 245 | |
| 22 | 189 | 233 | 249 | 265 | 281 | 297 | |
| 24 | 225 | 278 | 297 | 316 | 334 | 353 | |
| 26 | 264 | 326 | 348 | 370 | 392 | 415 | |
| 28 | 306 | 378 | 44 | 429 | 455 | 481 | |
| 30 | 351 | 434 | 463 | 493 | 523 | 552 | |
| 32 | 399 | 494 | 527 | 561 | 594 | 628 | |
| 34 | 451 | 557 | 595 | 633 | 671 | 709 | |
| 36 | 505 | 625 | 667 | 710 | 752 | 795 | |
| 38 | 563 | 696 | 744 | 791 | 838 | 866 | |
| 40 | 624 | 771 | 824 | 876 | 929 | 981 | |
